What Are Ball Mill Liners?

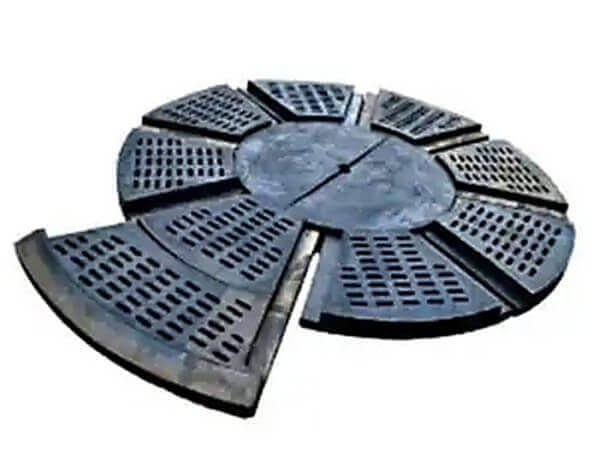

The ball mill diaphragm is a crucial part of the ball mill liner. Its performance directly affects the service life, operating rate, and grinding efficiency of the mill.
Common materials for ball mill diaphragms include high manganese steel, composite materials, modified high manganese steel, new high manganese steel, ultra-high manganese steel, super-strength high manganese steel, transformed high manganese steel, multi-element alloy steel, and high or low chromium cast iron.
Types of Ball Mill Diaphragms
| Type | Best For | Material Options |
|---|---|---|
| Central Discharge | Cement finish grinding | Ni-Hard IV, Cr-Mo Steel |
| Intermediate | Mining ore mills | Rubber-Composite |
| Outlet | Dry process plants | Polyurethane Screens |

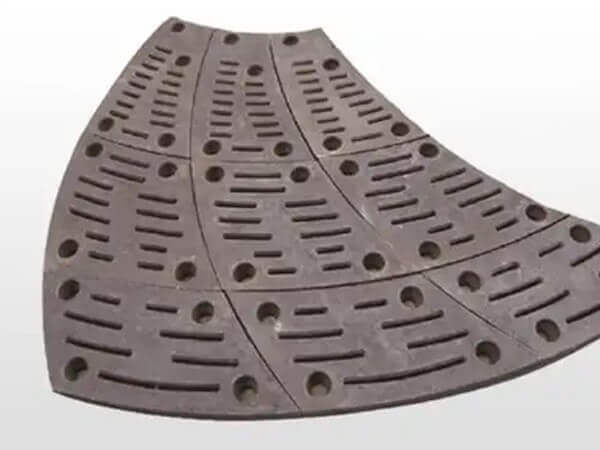

Ball Mill Diaphragm Design
The compartment plate plays a critical role in ball mill material processing. Its primary functions include:
- Separation of Grinding Bodies – As the material moves towards the discharge end, its particle size decreases. The grinding process transitions from impact-based to grinding-based. The compartment plate ensures that different-sized grinding bodies remain separated, preventing interference and optimizing efficiency.
- Prevention of Oversized Particles – Acting as a sieve, the compartment plate blocks large particles from reaching the fine grinding section, where weaker impact forces may fail to grind them adequately. This prevents inefficiencies and ensures the proper fineness of the final product.
- Control of Material Flow Velocity – The size and perforation pattern of the compartment plate regulate material flow inside the mill, directly influencing grinding duration and efficiency.
Materials for Ball Mill Diaphragm
Ball mill diaphragms are manufactured from various materials to meet specific operational requirements, including:
- Composite Materials – Combines different elements to enhance durability and performance.
- High Manganese Steel – Known for its toughness and work-hardening properties.
- Alloy Steel – Offers high wear resistance and impact strength.
- Chromium Cast Iron – Provides superior hardness and abrasion resistance.
Functions of a Ball Mill Diaphragm
- Grinding Media Separation – Prevents mixing of large and small grinding bodies, optimizing impact and grinding effects.
- Material Size Control – Acts as a sieve, preventing oversized particles from reaching the fine grinding section, thus improving final product quality.
- Flow Regulation – Controls the speed of material movement inside the mill, influencing grinding efficiency and energy consumption.
- Wear Protection – Shields mill components from excessive wear, extending service life and reducing maintenance costs.
Applications of Ball Mill Diaphragm
- Cement Industry – Enhances clinker grinding efficiency.
- Mining Industry – Optimizes ore processing and fine grinding.
- Power Plants – Used in coal grinding mills.
- Chemical Industry – Ensures fine particle size control for specialty chemicals.
Hongshun Ball Mill Diaphragm Supplier
Hongshun specializes in customizing ball mill diaphragms and other key components, including ball mill girth gears, pinions, trunnions, and bearing housings, tailored to your specific requirements.
If you have any questions, feel free to contact us—we’re here to help!
Ball Mill Diaphragm Processing

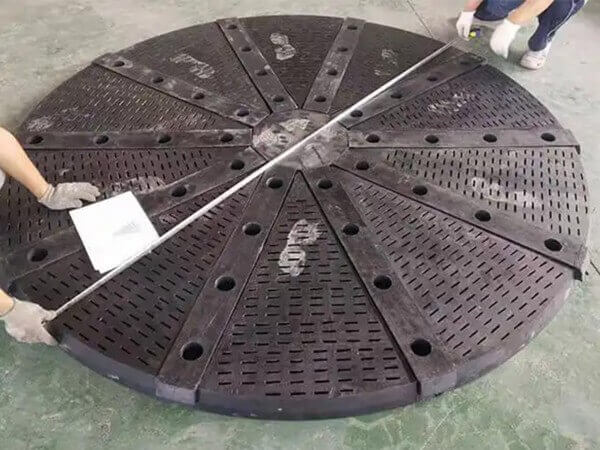

The ball mill diaphragm plate typically does not require machining. After casting, surface sand is removed, and burrs are polished to ensure a smooth finish.
Technology Advantages
- Stable performance and extended service life.
- Efficient material classification for improved grinding.
- Precise control of material and airflow velocity inside the ball mill.
focus on ferroalloy production, quality first!
Leave your requirements, FREE quotation!
call us: +8618837209569Get a Custom Ball Mill Diaphragm Today!
Looking for a high-performance ball mill diaphragm? Contact us today for a customized solution tailored to your grinding needs. Our expert team is ready to assist you with design, manufacturing, and after-sales support.
Our service
- Customizable Designs – We manufacture diaphragms to fit various mill types and customer requirements.
- High-Quality Materials – Our diaphragms are made from premium alloys for enhanced durability.
- Precision Engineering – Designed for optimal grinding efficiency and reduced energy consumption.
- Factory Direct Pricing – Competitive pricing with no middleman costs.
- Global Shipping – Reliable logistics to ensure timely delivery worldwide.
