Ball mills are essential grinding machines widely employed in mineral processing plants, cement production, thermal power generation, fertilizer manufacturing, and various other industries. They operate by utilizing grinding media within the chamber to crush and refine raw materials, effectively reducing particle size.
Grinding Mechanisms of Ball Mills
The grinding media inside a ball mill pulverizes materials through three primary mechanisms:
- Rolling – The grinding media rolls along the chamber, applying pressure to the material through its own weight, resulting in gradual size reduction.
- Impact – As the mill rotates, the grinding media is lifted and then dropped from a height, striking the material with significant force to break it down.
- Sliding – Some grinding media adheres to the raw material and does not roll freely. Instead, it slides against the mill’s lining plate, providing a shearing and grinding action.
Grinding Media: A Critical Wear Component
Similar to ball mill liners, grinding media is not only a fundamental component of the milling process but also one of the most susceptible to wear. To meet diverse grinding demands, the market offers various types of grinding media, each designed for specific applications and efficiency requirements.
Hongahun Ball Mill Grinding Media For Sale
Anyang Hongshun Grinding Media Co., Ltd. specializes in producing high-performance wear-resistant products with an annual production capacity of 25,000 tons. Equipped with advanced production facilities, state-of-the-art testing instruments, and a dedicated team, Hongshun ensures top-notch quality in its products.
Our company specializes in the production of a wide range of high-quality wear-resistant products, including cast grinding balls, forged steel balls and grinding cylpebs. We also manufacture ball mill wear parts and other wear-resistant castings, catering to industries that require durable and reliable grinding media and components. Our expertise ensures superior performance and longevity in demanding applications. Our high-quality grinding balls are produced using advanced isothermal pouring, medium-frequency electric furnace smelting, and sand mold casting techniques, combined with strict multi-stage heat treatment processes. This ensures exceptional hardness, wear resistance, and toughness, meeting the stringent demands of industries such as mining, cement, chemicals, and power generation. With high hardness, excellent abrasion resistance, and no loss of roundness, our grinding balls (DIA 8-150mm) help users reduce production costs and improve economic efficiency. Our products are widely used in mining, power plants, cement, and chemical industries and are exported to Japan, South Korea, Australia, and other global markets.
Types of Grinding Media
Grinding media comes in diverse shapes, sizes, and materials to suit different milling requirements. The most widely used types in ball mills include:
- Grinding balls – Spherical media for efficient impact and rolling action
- Grinding cylpebs – Short cylindrical or tapered media for enhanced grinding surface
- Grinding rods – Long cylindrical media primarily used in rod mills for selective grinding
Each type offers distinct advantages depending on the material being processed and the desired particle size distribution. The optimal selection of grinding media significantly impacts milling efficiency, wear rates, and final product quality.
Grinding Balls For Ball Mill
According to the material, grinding balls can be divided into metallic grinding balls and non-metallic grinding balls.
Metallic Grinding Balls (Steel Grinding Balls)
Steel grinding balls are high-performance spherical grinding media composed primarily of ferroalloys with key additives including carbon, chromium, manganese, and molybdenum. Known for their exceptional hardness and wear resistance, these balls are ideal for large-scale industrial ball mills in mining, cement production, and power generation industries.
Steel grinding balls are categorized into two main types based on manufacturing processes:

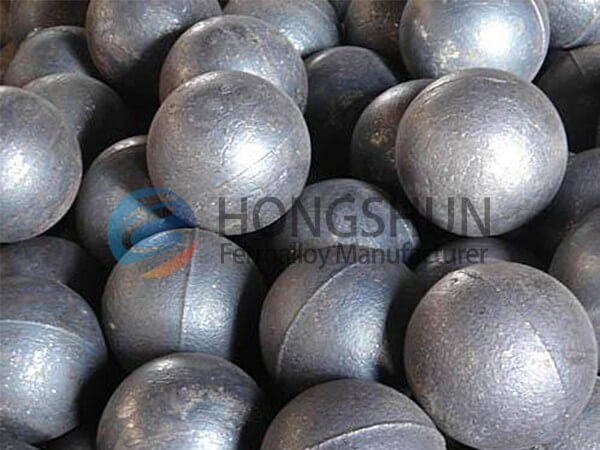

1. Cast Steel Balls
Produced by melting scrap steel, iron, or pig iron along with precious metal alloys at temperatures exceeding 1550°C, the molten metal is then poured into molds to form spherical shapes.
Key Features:
- Visible sprue gate on the surface
- Breakage rate: ~3%
- Carbon content: 1.8%–3.2%
Classification by Chromium Content:
- High-Chromium Steel Balls (Cr ≥10%, HRC ≥58, impact toughness ≥3 J/cm²)
- Medium-Chromium Steel Balls (Cr 3%-7%, HRC ≥47, impact toughness ≥2 J/cm²)
- Low-Chromium Steel Balls (Cr 0.5%-2.5%, HRC ≥45, impact toughness ≥1.5 J/cm²)

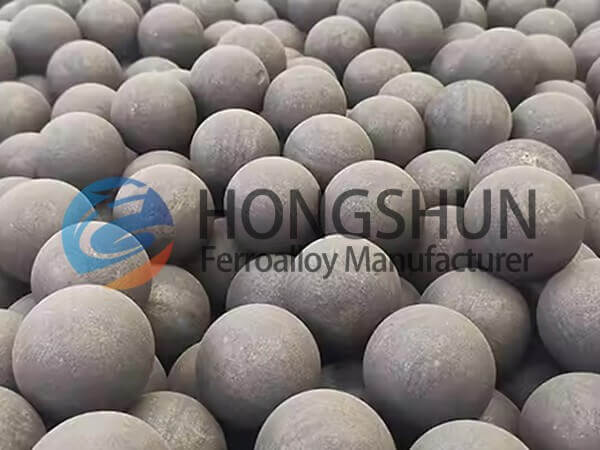

2. Forged Steel Balls

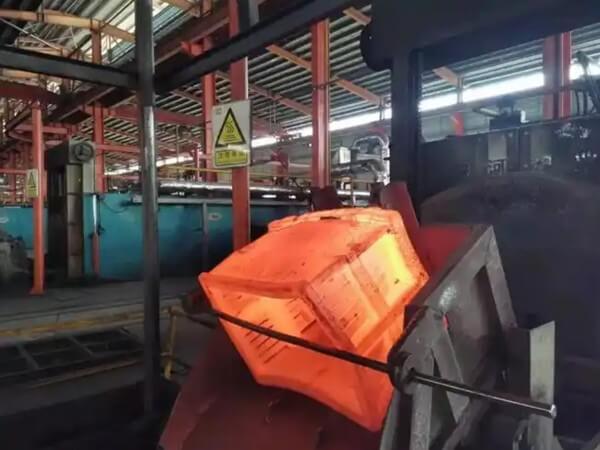

Manufactured by heating high-quality round bar steel and forging it into spherical shapes.
Key Features:
- Smooth surface (no sprue gate)
- Lower breakage rate: ~1%
- Chromium content: 0.1%–0.5%
- Carbon content: <1.0%
- High dimensional stability (resistant to deformation)

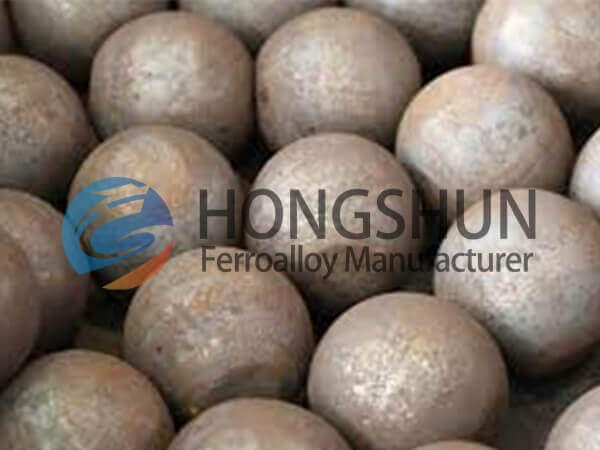

Cast Steel Balls
Forged Steel Balls
Non-Metallic Grinding Balls
Non-metallic grinding balls are spherical milling media manufactured from ceramic materials (SiO₂, SiC) or organic polymers (CF). These specialized grinding elements are primarily used in small ball mills for processing:
- Non-abrasive materials
- Low-hardness substances
- Materials requiring contamination-free grinding
Their applications span multiple industries including food processing and chemical manufacturing, where metal-free grinding is essential for product purity.

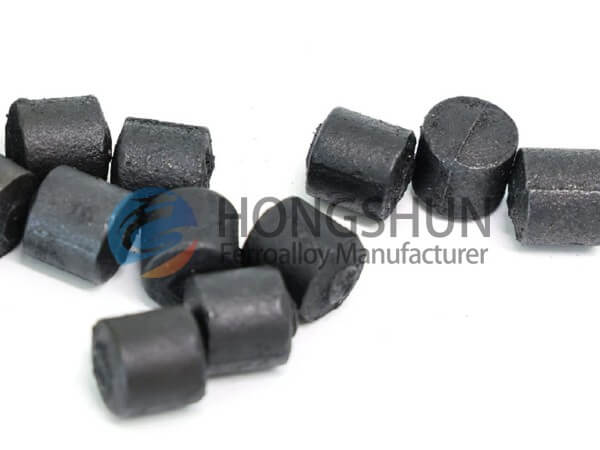

Grinding Cylpebs For Ball Mill
Characterized by their distinctive short-cylindrical or tapered-conical geometry, grinding cylpebs serve as efficient alternatives to traditional grinding balls. These precision-engineered media elements come in both metal and ceramic variants, with industrial-scale operations typically employing durable metallic versions – particularly cast and forged steel models – for optimal milling performance in large ball mill systems.
Key features:
- Unique shape enhances grinding efficiency
- Available in metal and ceramic compositions
- Industrial preference for steel variants
- Specifically designed for large-scale milling applications

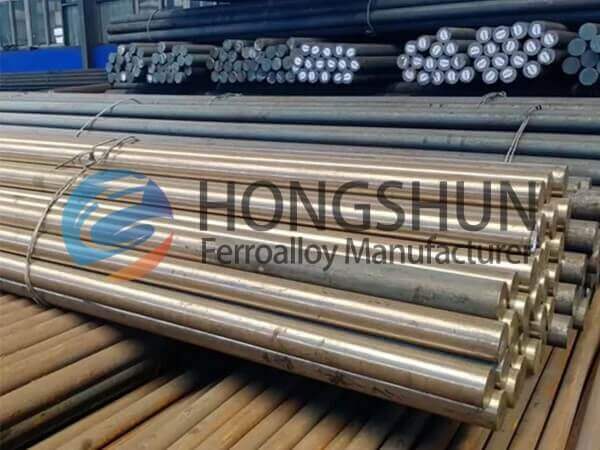

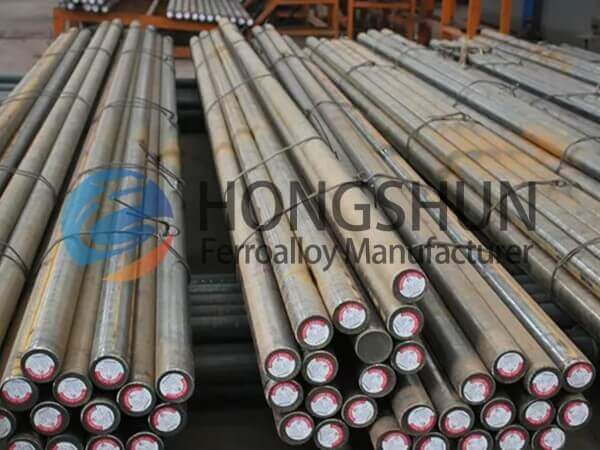

Grinding Rods For Ball Mill
Grinding rods are cylindrical grinding media, typically 50–100 mm shorter than the grinding chamber length, ensuring optimal movement and efficient material reduction. Crafted from high-grade steel, they combine superior wear resistance with high toughness, making them ideal for heavy-duty milling applications.
Primary Applications:
- Rod mills for coarse grinding
- Mineral processing (ore beneficiation, coal preparation)
- Selective particle size reduction (minimizing over-grinding)
Key Advantages:
✔ Durable steel construction – Extended service life
✔ Precision-engineered length – Maximizes grinding efficiency
✔ Industry-proven performance – Trusted in mining and mineral processing
Grinding Cylpebs For Ball Mill
Grinding Rods For Ball Mill
Why Choose Hongshun Ball Mill Media
With over 20 years of industry expertise, HONGSHUN delivers premium industrial ball mills and high-performance grinding media, including:
- Steel grinding balls
- Steel grinding rods
- Steel grinding cylpebs
Why Choose Hongshun?
✔ Rigorous Quality Control
Our comprehensive inspection system ensures strict compliance with GB, YB, and SGS standards at every stage: pre-production, production, and post-production.
✔ State-of-the-Art Manufacturing
Equipped with advanced horizontal forging, rotary forging, and automated production lines, we guarantee precision-engineered, high-efficiency grinding solutions with intelligent process control.
✔ Customized Support & Service
From one-on-one consultation to tailored cost-saving solutions, we provide:
- Product customization
- Dedicated after-sales support
- Free remote installation guidance
focus on ferroalloy production, quality first!
Leave your requirements, FREE quotation!
call us: +8618837209569Hongshun Ball Mill Grinding Media Price
Get competitive ex-factory prices on our premium ball mill grinding media. Pricing varies by product type, with exclusive discounts available on select items.
For quotes on our high-performance grinding media, contact us today! Our team guarantees a response within 24 hours.
